SPOT | PROFILE | WASH

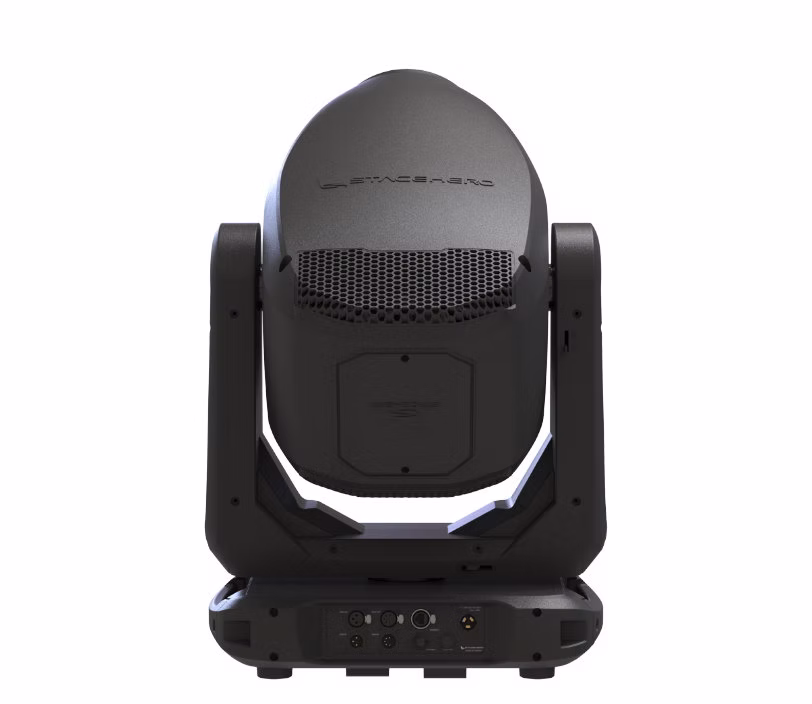

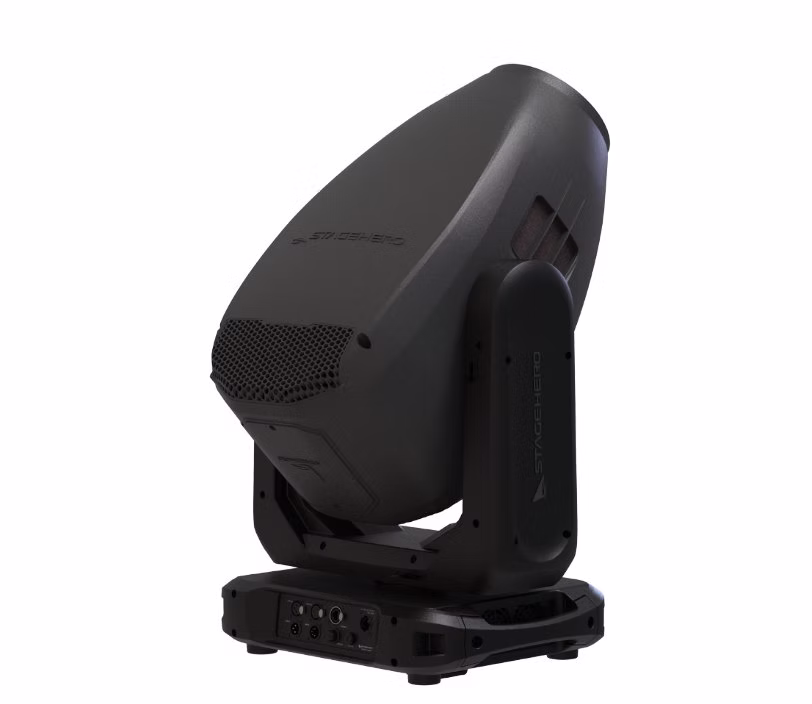

The S1000 LED Profile packs with the latest 1000W LED white light engine for higher lumen output that covers most applications. The addition of the +/- 90 degrees rotatable framing shutter system with 4 individually controllable blades provides more dynamic use of different effects, on top of the already rich packed functions like the multi gobo wheels and animation wheel ready to overlap.



The color mixing system with the combination of color wheels, CMY mixing, CTO, CRI/CTB ensures more colors can be generated when needed.

Features

  • 1000W LED Engine

  •  High output & even projection

  •  2 x modular / quick-disconnect effects system

  •  4 Blades Framing Shutter with +/- 90° rotation



Technical Data
Light Source

  • 1000W White LED Engine

  • Color temperature 6500K, CRI 70

  • Rated lumen output: 79,000 lm (light source)

  • ​Frontal lens output: 46,000 lm

  • Led Life Expectancy: approx. 50.000 hours


Optical System

  • Efficient optical system, ratio 9.8 :1

  • Zoom range 5.3° - 52°

  • Linear & fast motorized zoom

  • Frontal lens diameter: 178 mm


Functions​

  • 1 indexable rotating gobo wheel, with 6 glass gobo + open

  • 1 changeable static gobo wheel, with 7 glass gobo + open

  • 1 animation effect wheel

  • 4 blades framing shutter with +/- 90° rotation

  • Iris 15% - 100%

  • 2 prisms, 5-facet & 4-facet linear

  • 2 frost filter: light & heavy frost

  • 7 color wheels

  • Linear CMY + CTO color mixing

  • CRI + CTB filter

  • Selectable dimmer curves + dimmer speeds.

  • Selectable PWM Modes, flicker-free

  • Pre-programmed random strobe & pulse effects

  • LED controllable in 9 zones, for animated effects.


Movement

  • High precision stepping motors

  • 16-bit Pan/Tilt control

  • Position Feedback, auto correction.

  • Pan and Tilt movement range: 540°/270°



 Thermal

  • Maximum ambient temperature: 45° C (113° F)

  • Minimium ambient temperature: -10° C (14° F)

  • Adaptive temperature control for highest efficiency

  • 5 selectable fan modes

  • Fan monitoring / RPM feedback


Control and programming

  • Setting & Addressing: 2.8" LCD with 5 navigation input buttons

  • Protocol: USITT DMX-512, ArtNet & sACN

  • DMX-RDM compatible

  • Optional wireless DMX (CRMX Timo 2 / W-DMX)

  • 2 DMX protocol modes

  • Control channels: 42 / 64

  • Stand-alone mode

  • DMX In/Out: XLR-3 & XLR-5, Ethernet (In)


Electrical Specification​

  • Electronic switching power supply with auto-sensing, Active PFC

  • Input voltage: 100-240 V, 50/60 Hz

  • Max. power consumption: 1460 W

  • Power in connector: Neutrik powerCON True1

Mechanical Specification

  • Height: 783 mm

  • Width: 462.2 mm

  • Depth: 345.7 mm

  • Weight: 40.6 kg

    ​

Rigging

  • Two Omega ¼ turn brackets

  • 4 mounting points

  • 1 attachment points for safety wire


Included accessories

  • 2 x Omega brackets

  • 1 x Power cable with Neutrik PowerCon True1 connector


Gobo / Animation  Wheels
S1000 LED Profile logo.jpg

Rotation
Gobos

S1000 Rot Gobo All-downsize.jpg

Static
Gobos

S1000 Static Gobo downsize.jpg

*Static & Rot. Gobo size: O/D 32mm, graphic dia. 24mm, glass thickness 1.1mm +/- 0.05​

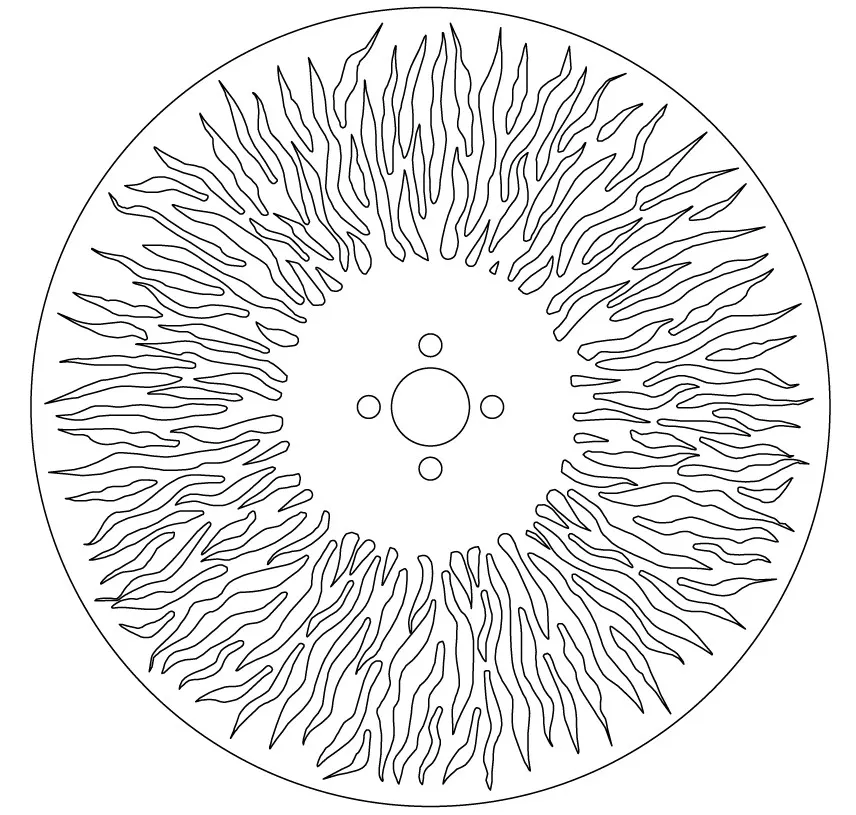

Animation
Wheel

Animation Wheel.jpg
S1000 LED Profile Prism.jpg

Prisms

5 Facet                       4 Facet

Technical Drawing
S1000 Dimensional drawing-v1.1.jpg

​Measurement in m/m & inch.
