IP65 | PIXEL FREE | SOFT LIGHT

The S400 Color Panel C4 offers special invisible pixel effects and homogenous light projections. Within its rather small form factor packs a tremendous lumen output up to 39,000 lumen. The built-in color output mode can be used to  intensified Color+ & White+ or standard mode for different applications. The IP65 protection class also ensure that fixture can be used for outdoor for most flexible installations.

Features
  • 288 x Osram® RGBW LEDs

  •  Pixel-Free & Even light output.

  •  Compact size with incredible light output.

  •  Wireless DMX by LumenRadio

  •  IP 65 Protection Class



Technical Data
S400-C4 logo.jpg
Light Source
  • 288 x Osram RGBW LED

  • Rated lumen output: 39,000 lm

  • Led Life Expectancy: approx. 50.000 hours


Optical System
  • Pixel-Free Optics

  • Beam angle 100°


Functions
  • RGBW, 8 or 16 bit color mixing

  • High resolution dimmer 0–100%

  • Seamless CTO

  • Virtual color wheel with 39 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K, 7.200 K and 8.000 K)

  • Selectable dimmer curves

  • Selectable PWM Modes, Flicker-Free

  • Strobe with variable speed (max. 20Hz )

  • Pre-programmed random strobe & pulse effects


Movement
  • Fixture head manually adjustable (Tilt 0°-105°)

 Thermal
  • Maximum ambient temperature: 45° C (113° F)

  • Minimium ambient temperature: -10° C (14° F)

  • Adaptive temperature control for highest efficiency

  • 5 selectable fan modes

Control and programming
  • Setting & Addressing: 2x16 characters LC display & 4 buttons

  • Protocol: USITT DMX-512

  • DMX-RDM compatible

  • Wireless DMX (CRMX Timo 2 / W-DMX)

  • 4 DMX protocol modes

  • Control channels: 4, 7, 14, 19

  • 3-editable programs, each up to 25 steps

  • Stand-alone mode

  • DMX In/Out: XLR-5


Electrical Specification
  • Electronic switching power supply with auto-sensing, Active PFC

  • Input voltage: 100-240 V, 50/60 Hz

  • Max. power consumption: 440 W

  • Power in / Out connector: Neutrik powerCON True1

Mechanical Specification
  • Height: 305 mm (12.0")

  • Width: 240 mm (9.44")

  • Depth: 135 mm (5.3")

  • Weight: 4.0 kg (8.8 lbs)

  • IP65


Rigging
  • 1 Omega ¼ turn brackets

  • 2 attachment points for safety wire


Included accessories
  • 2 x Omega brackets

  • 1 x Power cable with Neutrik PowerCon True1 connector

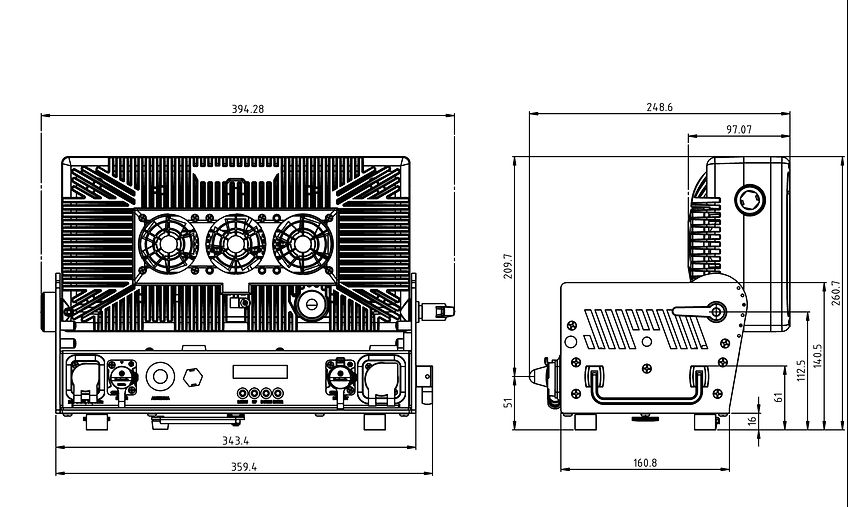

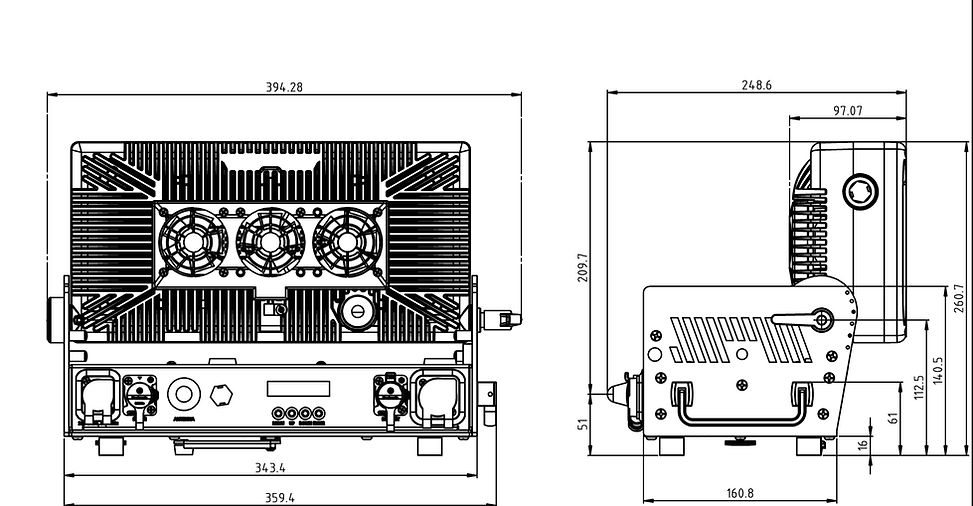

Technical Drawing
S400-C4 Dimension Head Folded.jpg

​Measurement in m/m.
